Trackflex

Trackflex Sirolimus Eluting Stent

AI-designed ultra-thin stent with superior flexibility, strength, and deliverability

Advanced Design & Drug Delivery Technology

Semi-Compliant PTCA Balloon Catheter Designed Specifically for Pre-dilation and Drug/Stent Delivery

Maximum Pushbility -TranSmoothTM Technology Enhanced Deliverability

Deep Embedding – Optimized strut architecture ensures deep vessel wall embedding, enhancing crossability and improving stent stability.

Coating Integrity – Homogeneous drug coating encapsulated within a biodegradable polymer matrix ensures uniform drug distribution at the treated lesion and maintains coating integrity during delivery.

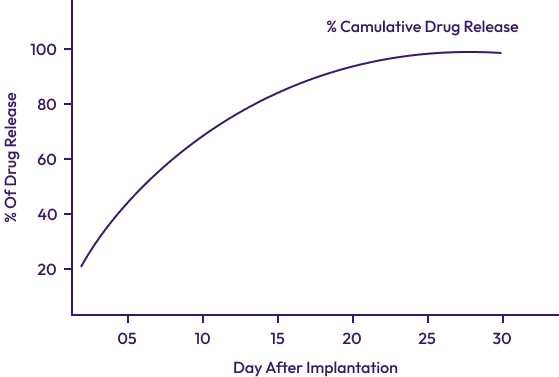

Drug Release Profile

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

A very fine drug-polymer thickness of 3-5µm reduces tissue polymer contact which eventually resulted into fast remodelling of artery.

Proprietary blend of Sirolisum drug & Biodegradable polymers provides the initial burst release, following to 80% within 30 days and remaining 20% programmed to get released for 60 days. Release kinetics was designed to enhance the arterial healing process

Key features and benefits

Ultra thin struts 65 µ

Lower inflammation, faster endothelisation and reduces the risk of stent thrombosis

Biodegradable Polymer

Offers improved vessel healing, long term safety in terms of death, stent thrombosis and myocardial infarction.

Everolimus drug

Time tested and proven drug

Negligible foreshortening

Ideal for ostial and bifurcation lesions

AI derived stent design

Designed to improve trackability and flexibility of the stent leading to first choice of stent in CHIP cases.

Higher tensile strength

Attributes to kink resistance and flexible performance of SDS

Uniform stent design

Leads to unidirectional stent expansion reducing chances of vessel injury

Wavy strut pattern

Contributes to larger angle during expansion eventually leading to better stent flexibility

Ideal overexpansion limits

Leads to treat complex cases with anatomical anomanlies

Ultr low tip profile

Gives resistance free trackability and crossability

Platinum iridium markers

Precisely placed within balloon cones for accurate stent positioning & placement

Low recoil

Avoids the risk of malposition and restenosis

Ordering Information

STENT DIAMETER	8 mm	13 mm	16 mm	20 mm	24 mm	28 mm	32 mm	36 mm	40 mm	43 mm	47 mm	OVER EXPANSION DATA
2.0 mm	TR20008	TR20013	TR20016	TR20020	TR20024	TR20028	TR20032	TR20036	TR20040	TR20043	TR20047	3.5 mm
2.25 mm	TR22508	TR22513	TR22516	TR22520	TR22524	TR22528	TR22532	TR22536	TR22540	TR22543	TR22547	3.5 mm
2.5 mm	TR25008	TR25013	TR25016	TR25020	TR25024	TR25028	TR25032	TR25036	TR25040	TR25043	TR25047	3.5 mm
2.75 mm	TR27508	TR27513	TR27516	TR27520	TR27524	TR27528	TR27532	TR27536	TR27540	TR27543	TR27547	4.5 mm
3.0 mm	TR30008	TR30013	TR30016	TR30020	TR30024	TR30028	TR30032	TR30036	TR30040	TR30043	TR30047	4.5 mm
3.5 mm	TR35008	TR35013	TR35016	TR35020	TR35024	TR35028	TR35032	TR35036	TR35040	TR35043	TR35047	4.5 mm
4.0 mm	TR40008	TR40013	TR40016	TR40020	TR40024	TR40028	TR40032	TR40036	TR40040	TR40043	TR40047	5.5 mm
4.5 mm	TR45008	TR45013	TR45016	TR45020	TR45024	TR45028	TR45032	TR45036	TR45040	TR45043	TR45047	5.5 mm

Stent Specification

Material	L-605 Cobalt Chromium
Drug Dose	1.2 µm m²
Strut Thickness	65 µ
Length (mm)	8,13,16,20,24,28,32,36,40,43 & 47
Delivery System	Rapid Exchange
Crossing Profile (mm)	0.038" (3x20mm)
Guidewire Compatibility	0.014”
Rated Burst Pressure	16 atm
Ballon Overhang	≤0.5 mm
Distal Shaft Diameter†	2.7 F

Material	L-605 Cobalt Chromium
Drug Dose	1.2 µm m²
Strut Thickness	65 µ
Length (mm)	8,13,16,20,24,28,32,36,40,43 & 47
Delivery System	Rapid Exchange
Crossing Profile (mm)	0.038" (3x20mm)
Guidewire Compatibility	0.014”
Rated Burst Pressure	16 atm
Ballon Overhang	≤0.5 mm
Distal Shaft Diameter†	2.7 F
